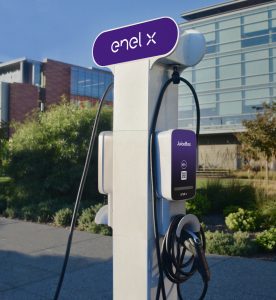

JuicePedestal™

Available in 32A, 40A, 48A, and 80A options, the JuicePedestal™ offers best-in-class smart charging for businesses, municipalities, property owners and fleet managers that want to offer EV charging to their employees, customers and tenants.

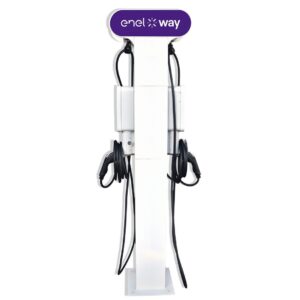

With universal EV compatibility and a UL certification, JuicePedestal™ is an all-purpose commercial charging station for EV drivers that features two JuiceBoxes with 20 foot cables with a retractable pulley system. JuicePedestal™ offers flexible charging port configurations and multiple payment options.

  • Allows multiple user authentication methods
  • Enables open network and flexible payment option
  • Connects to the internet via cellular or Wi-Fi
  • Ships with two JuiceBox Pro charging stations assembled to pedestal to reduce installation costs
Description
Specifications
Installation

Versatile Power Options

  • Choose between a 32 amp, 40 amp, 48 amp and 80 amp output to charge electric vehicles quickly and easily

Flexible Payment

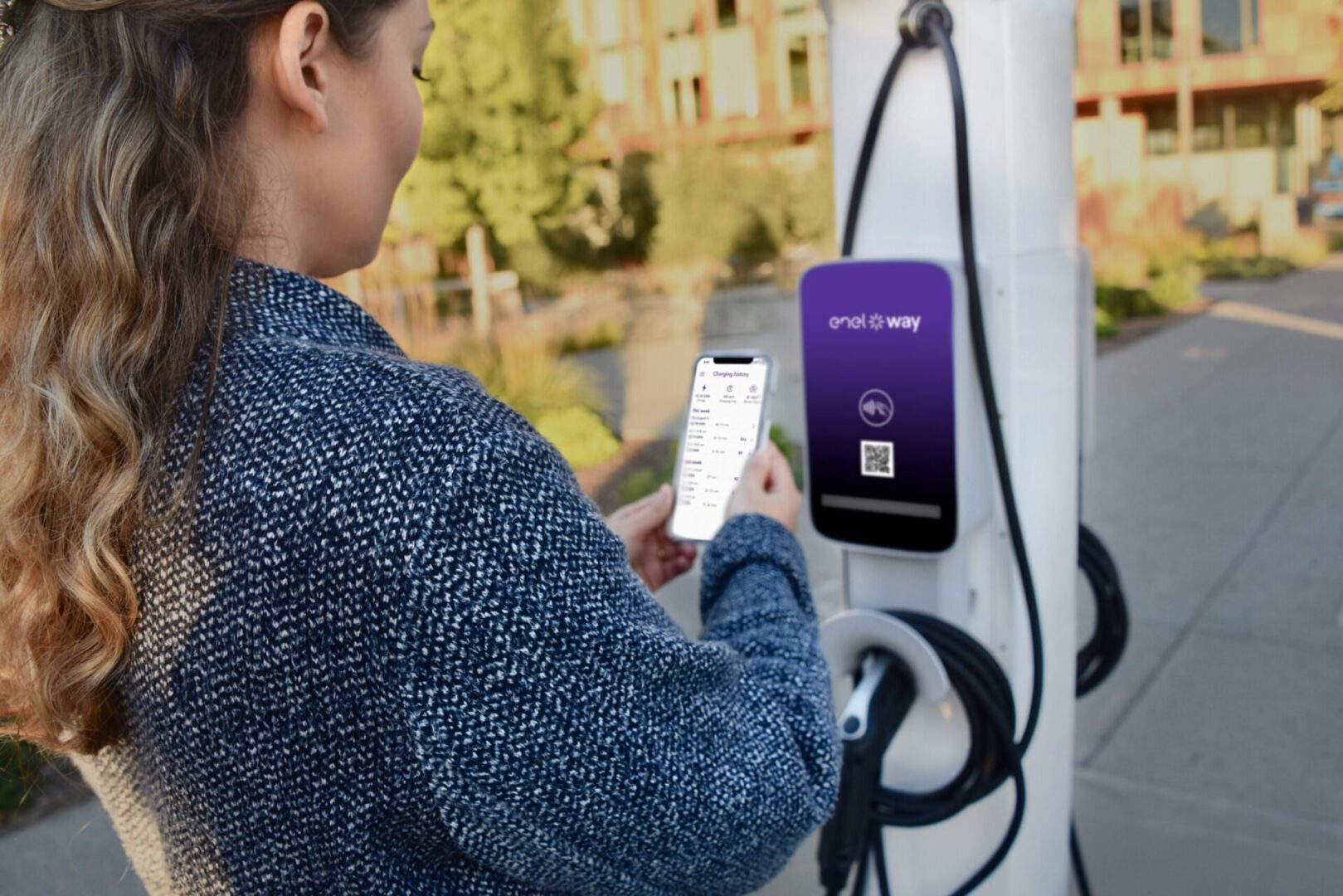

  • Allow drivers to access and pay via mobile device or optional credit card terminal

Universal Compatibility

  • SAE-J1772 ™ Compliance ensures compatibility with all EVs

Industrial Design

  • Designed for durability in all-weather conditions

Smart Charging Platform

  • JuiceNet smart charging platform offers a web-based portal to monitor usage and configure charging settings
  • Weight & Dimensions: Height: 74 in/188 cm
    Width: 19.88 in/50.50 cm by 8.00 in /20.32 cm deep
  • Safety and certifications: UL, cUL and ENERGY STAR® compliant
  • Warranty: 3-year limited warranty, optional 2 additional years
  • Made in North America: From domestic & imported parts
  • Electrical Characteristics: Choose between four power configurations: 32A, 7.7 kW; 40A, 9.6 kW;
    48A, 11.2kW; and 80A, 19.2 kW
  • Input Cables: Internal junction box for two circuits to power chargers
  • Output Cable & Connector: 20 ft/6.1m cables, each rated 240VAC with a J1772 Plug
  • Codes & Standards: FCC Part 15 Class B, NEC 625 compliant, ENERGY STAR®, OCPP 1.6J and OpenADR 2.0b compliant



The JuicePedestal™ can be installed by Encore Energy Group’s trained installers. Contact us today to learn more!
